RJDC

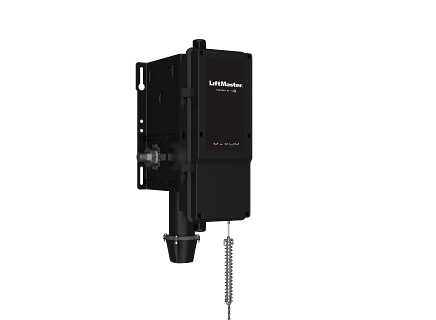

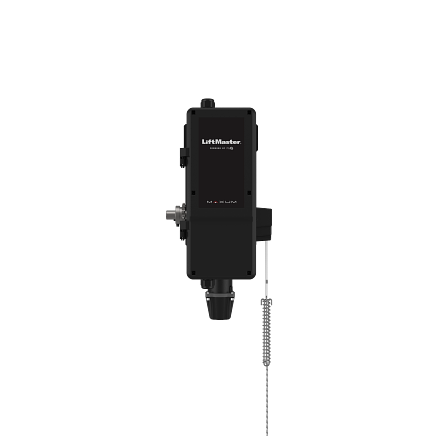

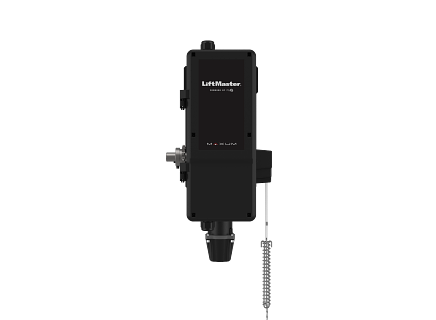

MAXUM Jackshaft with Manual Release DC Commercial Operator
Faster: At an average speed of 12” per second, the operator quickly opens doors to help your business stay efficient and profitable. The floor LCD display allows you to easily track your maintenance schedule—reducing downtime.
Smarter: Soft-start & Soft-stop gives the operator a longer lifespan, while Battery Backup ensures it will keep running—even in a power outage. With embedded Wi‑Fi connectivity out of the box, you can use myQ Facility software to access data and analytics to improve your business.
Simpler: Floor-level wall control makes the operator easier to control and check for preventative maintenance. The modular design enables both right and left-side mounting with a single unit—making the operator flexible to the needs of your application.
Connectivity: Connect to myQ Facility, allowing you to see and control what is happening at your facility’s commercial doors from anywhere.
Diagnostics: With myQ Diagnostics, you can know your maintenance schedule and be alerted when there is a problem to reduce time on tools and increase safety.
myQ Compatibility: Works with myQ, myQ Facility, or myQ Enterprise
Power: 120V/240V (1PH/3PH); 480V (3PH); 208V & 600V (3PH) available with transformer
Wi‑Fi: Yes
Battery Backup: Capable with accessory kit DC45AH or DC7AH
Monitored Safety Inputs: 3 Inputs
Duty Cycle Per Hour p/h & Per Day p/d: Standard - 20 cycles p/h / 90 p/d | Extended - 30 cycles p/h / 150 p/d
Speed/Per Second: Faster speed, 12” on average for sectional and 8–9 inches for rolling steel doors
Radio Receiver: Security + 2.0
Motor Type: 24VDC Motor Drive
Soft Start/Stop: Yes
Dual handing for installs: Right or left no longer required for order
Warranty: Standard Duty - 2 to 5 Years, or 85,000 Cycles; Extended Duty - 2 to 5 Years, or 130,000 Cycles
