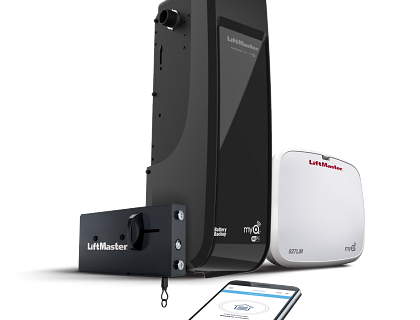

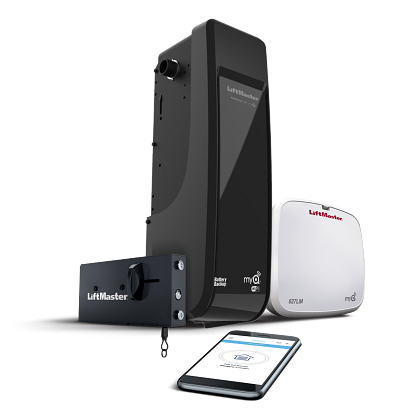

LiftMaster Model 98022 Garage Door Opener
Wall Mount Garage Door Opener
- Space saving design opens up the ceiling
- Built-in Wi-FI and Bluetooth for the easiest way to connect the garage.
- myQ Remote LED Light provides maintenance-free illumination
- myQ Mobile App lets users receive alerts and control the opener from anywhere
Wall-Mount design and a powerful ultra-quiet DC motor that eliminates noise and reduces vibrations through the ceiling while providing a reliable, smooth operation.
- Integrated Battery backup ensures access even when the powers out.
- Unmatched warranty that includes lifetime motor, 5-year parts, and 1-year battery and accessories
- Time-to-Close automatically closes the door after a user defined amount of time: 1min, 5min, 10min or custom.
- Security+ 2.0 safeguards garage access by sending a new code to your garage door opener with every click.
- Motion Detector automaically turns on the light.
- The Protector System Auto-Reverse the door if there’s an obstruction.
Use the myQ app to control, secure, and monitor your garage, and conveniently share and manage access to your home without sharing passcodes or keys. Also, take the hassle out of service repair and easily connect to idc-Automatic through the myQ app.
- 827LM myQ Remote LED Light: Operates automatically with the opener and works with the myQ App
- 893MAX 3-Button Remote Control: Operates up to 3 garage door openers
- 485LM Garage Door Opener Battery: Integrated battery backup allows you to open and close your door even when the power is out
- 841LM Automatic Garage Door Lock: Deadbolts the garage door automatically every time it closes
- 880LMW Smart Control Panel: Motion detector activiates the Garage Door Opener lights as soon as movement is detected
Motor
- Medium duty 12V DC, automatic thermal protection, permanent lubrication
- More Value Less Parts- No more Cable Tension Monitor means faster and easier installation
Mechanics
- Steel chassis and plastic cover
- Internal chain and Sprocket Drive Mechanism (63:1 Gear Reduction)
- Auto-force adjustment for changing weather and environmental conditions
- DC Wi-Fi logic with built-in Bluetooth and surge suppressor
- Up to 850lbs lift capacity
Power
- 120V AC, 60Hz voltage
- 1.5A current rating
- UL listed, 6' power cord (3-prong)
Speed
8.5" per second upward, 7.6" per second downward
Lighting
myQ remote LED light - 1,500 lumens
Dimensions
- Opener head: 12.5" H x 7.5" W x 7.9" L
- Max door height: 14 ft.
- Max door width: 18 ft.
- Headroom clearance required: 3 in. from center of torsion bar
- Max door weight: 850 lbs.
Warranties
- Lifetime: Motor
- 5 Year: Parts
- 1 Year: Battery and Accessories
Security+ 2.0
- Radio Controls
- Operating range: ~200 ft
- Operating Temperature: -31o F to 149o F
- 3-Button Remote Control (893MAX)
- Remote Control Code Format: Security+ 2.0 premium remote control
- Garage Door Opener Control Format: Security+ 2.0
- Anti-burglary coding
- Encrypted Controls
- Smart Control Panel (880 LMW)
- Timer-to-Close
- Program Remote Controls, keypads, and myQ accessories
- Maintenance Alert System
- Easy Wi-Fi Setup
MyQ Radio
- 902-928 MHz 50 Channel FHSS (frequently hopping spread spectrum
- Provides 2-way communication from garage door opener and myQ accessories
- Enables monitoring & control of garage door openers via smartphone or tablet
Homelink® compatible (version 4.0 or higher)
May require external adapter depending on the model and year of vehicle. Visit homelink.com for additional information.
